Astell&Kern

SP1000

Scroll

All New High-End, A&ultima SP1000

Astell&Kern is proud to introduce the A&ultima SP1000. The A&ultima SP1000 is a one-of-a-kind, high-end, powerful flagship high resolution music player equipped with the latest advanced features.

Get Both High Output and Vivid Sound

Material Innovations,

Great Performance for the Ultimate Experience

Ultimate Sound Quality The latest AK4497EQ dual-DAC design and the upgraded CPU in the A&ultima SP1000 allows for accurate playback of native 32bit/384kHz audio with no compromise on sound quality. The music is played back, bit-for-bit, just as the artist and engineer intended

In order to develop the ultimate audio player that has never been experienced before, not only do we use the latest DAC and technology available, but we use the innovative audio technology of TERATON ALPHA, AK's Ultimate Sound Solution, which has been refined for the SP3000.

TERATON ALPHA, engineered through endless research, is Astell&Kern's unique technology that has been designed to produce audio playback that is close to the original sound through effective power noise removal, efficient power management and unwavering amplification, and a fully converted audio output interface. HEXA-Audio Circuitry structure and independent dual audio circuit, implemented for the first time in the SP3000, are paired together with TERATON ALPHA's sound solution to create the purest original sound.

Discover more

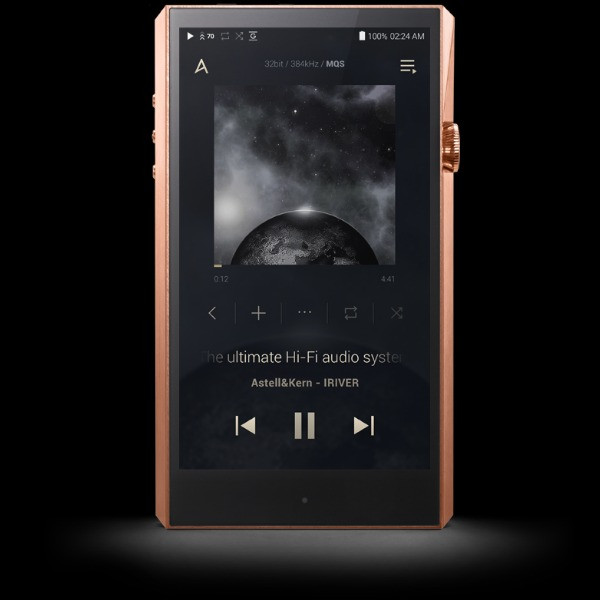

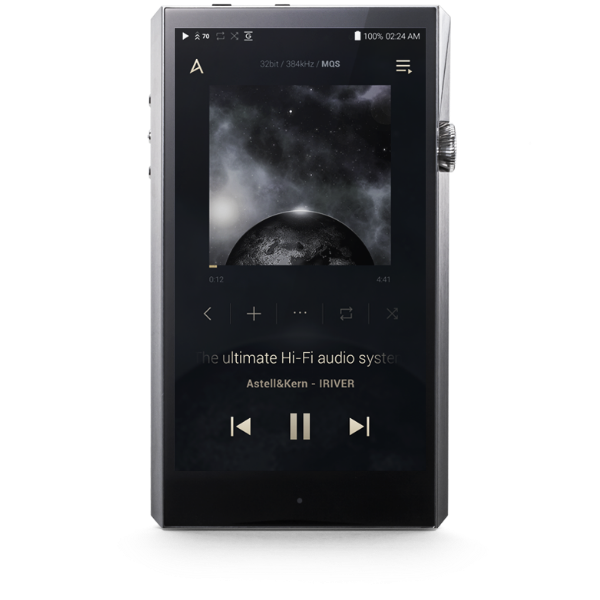

New Intuitive User Interface

The A&ultima SP1000 features a revamped interface design which Provides music playback from the home screen to give users a more music-centric experience. By placing the power button on the Multi-function wheel located on the Side of the A&ultima SP1000 instead of on the top, users can control the volume and turn the LCD screen ON/OFF, all with one simple control.

The A&ultima SP1000 is like a natural gemstone carefully refined by professionals. Knowing that sound is reflected from mass, like light is reflected from a surface; we designed the A&ultima SP1000 like a gemstone with reflective features on its surface.

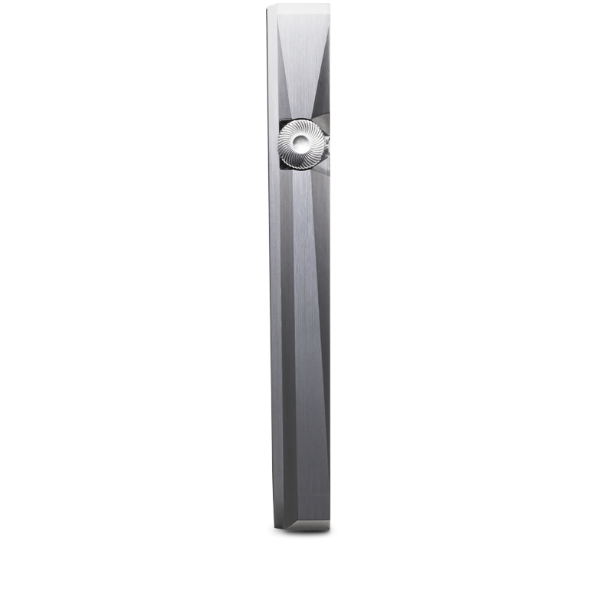

The crown-patterned volume wheel on the right corner is similar in appearance to a cut gemstone, which reflects light from various angles. The sophisticated volume wheel on A&ultima SP1000 not only delivers visual and textual details with precision, but allows convenient, one finger ON/OFF control and fine volume control with the addition of both push and turn features.

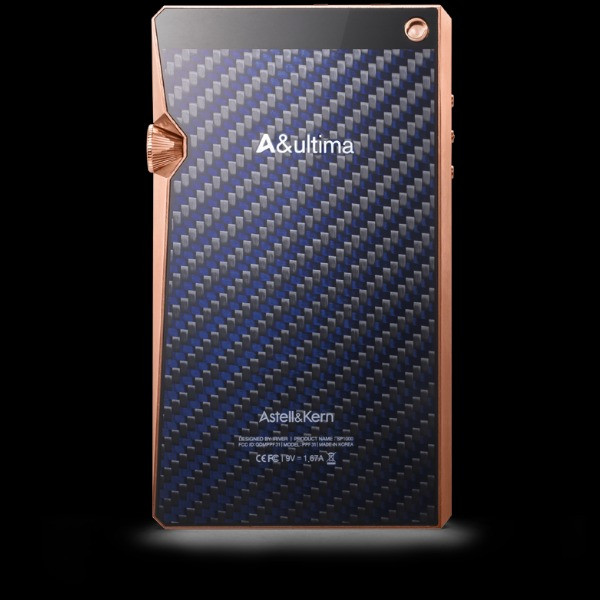

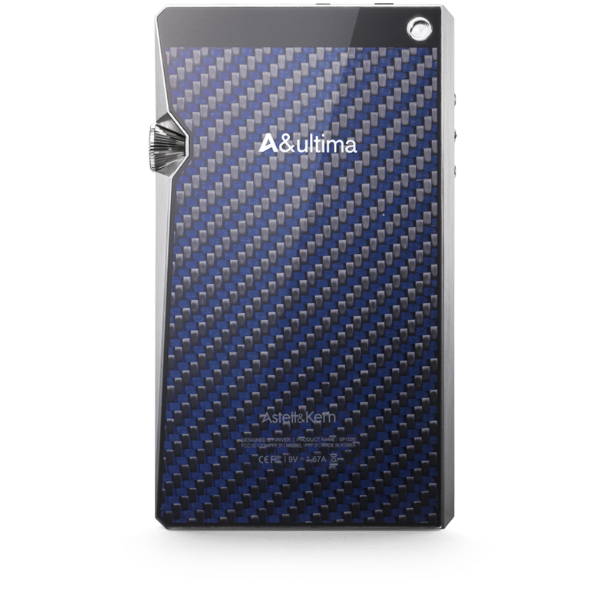

The external chassis of the A&ultima SP1000 is made of rugged Stainless Steel/Copper that resists aging and external shock. The A&ultima SP1000 is the ultimate music player, crafted in an artistically designed metallic setting.
Introducing the new SP1000 Onyx Black. This sleek and premium black coated stainless steel was made possible using PVD (Physical Vapor Deposition) coating technology. It is environmentally friendly and the results are finishes that provide long-lasting protection and durability, are resistant to chemicals, easy to maintain and protect against corrosion and wear. PVD coating has been used for products where higher endurance and reliability is demanded, including medical instruments, luxury accessories and more.

Sound Design With DAC Filters

With the SP3000, you can have fun creating your own sound style by selecting various DAC filters provided by the DAC manufacturer.
Design your own sound with 6 different DAC filters.

Premium Goat Leather Case

The SP3000 comes with a French goatskin leather case to protect and highlight the beauty of the 904L stainless steel body.

The case is made by ALRAN, located in Tarn in southern France, a historical tannery that was established in 1903 and has been manufacturing leather for over 100 years. It is one of the world’s leading tanneries, well-known for their natural leather manufacturing technology since the 1980’s. ALRAN is recognized as the best goatskin manufacturer and supplies other leading luxury brands such as H and L.

The leather case included with the SP3000 is developed with ALRAN Tannery's unique Hand-Boarding technology. This is a technology that processes the leather by rubbing it in various directions using wooden planks, so you can feel the texture of the surface. This process is unique compared to how other goatskin cases are produced.

Design
The A&ultima SP1000 is like a natural gemstone carefully refined by professionals. Knowing that sound is reflected from mass, like light is reflected from a surface; we designed the A&ultima SP1000 like a gemstone with reflective features on its surface. The crown-patterned volume wheel on the right corner is similar in appearance to a cut gemstone, which reflects light from various angles. The sophisticated volume wheel on A&ultima SP1000 not only delivers visual and textual details with precision, but allows convenient, one finger ON/OFF control and fine volume control with the addition of both push and turn features. The external chassis of the A&ultima SP1000 is made of rugged Stainless Steel/Copper that resists aging and external shock. The A&ultima SP1000 is the ultimate music player, crafted in an artistically designed metallic setting. Introducing the new SP1000 Onyx Black. This sleek and premium black coated stainless steel was made possible using PVD (Physical Vapor Deposition) coating technology. It is environmentally friendly and the results are finishes that provide long-lasting protection and durability, are resistant to chemicals, easy to maintain and protect against corrosion and wear. PVD coating has been used for products where higher endurance and reliability is demanded, including medical instruments, luxury accessories and more.

Model	SP1000
Body Color	Onyx Black / Stainless Steel / Copper
Body Material	Onyx Black, Stainless Steel : Stainless Steel / Copper : Copper
Display	5inch (720 x 1,280) Touchscreen
Supported Audio Formats	WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA
MQA playback	Services(Tidal Masters), Local files, External USB, MQA-CD(ripped)
Sample rate	8kHz ~ 384kHz (8/16/24/32bits per Sample) / DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo
Output Level	Unbalanced 2.2Vrms Balanced 3.9Vrms (Condition No Load)
CPU	Octa-Core
DAC	AKM AK4497EQ x2 (Dual DAC)
AKM AK4497EQ x2 (Dual DAC)	Support up to 32bit / 384kHz Bit to Bit Decoding
Input	USB 3.0 Type-C input (for charging & data transfer (PC & MAC)) / Connection Mode : MTP (Media Device)
Outputs	PHONES (3.5mm) / Optical Out (3.5mm) / Balanced Out (2.5mm, only 4-pole supported)
Wi-Fi	802.11 b/g/n (2.4GHz)
Dimensions	2.98 ”(75.8 mm) [W] x 5.2 ”(132 mm) [H] x 0.64 ”(16.2 mm) [D]
Weight	Onyx Black, Stainless Steel: 13.64 oz (386.6 g) / Copper: 13.68 oz (387.9 g)
Feature Enhancements	Firmware upgrades supported (OTA)
